RFID Hardware

TransTech Systems offers varied, powerful solutions for UHF RFID Asset Tracking, Inventory Control, Real-Time Localization and many other applications.

TransTech carries; Fixed and Integrated UHF Readers, Handheld readers, Antennae and cabling, Tags, Labels and ID Badges, Networked Cameras and UHF Card printers to supply the technology required for this burgeoning field.

Integrated Readers:

CS203

CS203 is an all weather ruggedized Ethernet connected UHF EPC C1G2 Integrated RFID reader with long read range and high read rate. This integrated reader is extremely versatile and can be used in all environments, indoor or outdoor, and for all verticals.

CS203 is uniquely offered with either left hand or right hand circular polarization, thus allowing it to be deployed in the most extreme dense reader environment face to face close range deployment.

^ back to top

Astra

Astra is an easy to install, unobtrusive, integrated reader/antenna designed for office and commercial environments. Driven by ThingMagic’s powerful Mercury5e UHF RFID reader module, Astra’s Power over Ethernet (PoE) and WiFi options allow for flexible, low cost, single cable installations.

With full support for ThingMagic’s enterprise-class MercuryOS software, Astra blends in well with corporate IT infrastructures and office lay outs.

^ back to top

Fixed Readers and Antenna

CS461

CS461 is a UHF EPC C1G2 4 Port Fixed RFID reader with industry leading and unique embedded event engine and combo functions APIs to enable an unprecedented level of intelligence and automation in a reader.

^ back to top

CS468

CS468 16-Port Reader is an Ethernet POE connected UHF EPC C1 G2 RFID reader with long read range & high read rate.

This 16 port reader has fine grain control of RF output from the 16 ports that enables very high speed antenna switching, making it be suitable for fine grain multiport operations including smart-shelf for retails, document control, multi-lanes reading for vehicle tracking, and applications that either continuous monitoring or periodic inventory of large number of segmented space is needed. With the same API as CS203 integrated reader, the application development time can be greatly reduced and leading to faster time to market.

^ back to top

The Mercury6 (M6) is a low profile, high-performance 4-port RFID reader designed for both indoor and outdoor applications. Driven by ThingMagic’s powerful Mercury6e UHF RFID reader module, the M6 Power over Ethernet (PoE) and WiFi options allow for flexible, low cost, installations.

With full support for ThingMagic’s enterprise-class MercuryOS software, M6 is compatible with both corporate IT infrastructures and sheltered outdoor environments.

^ back to top

CS790

CS790 antenna is an extremely thin monostatic antenna for use with high performance UHF RFID readers, such as CS468 or CS461 readers.

Its extremely thin form factor allows it to be used in applications that have limited space for antenna mounting, such as display cabinet, smart-shelf and conveyor-belts etc. Thus, this antenna is the best choice for using in retail applications, production line, document control and any applications require thin form factor antenna.

^ back to top

Speedway Revolution

Available in both 4-port and 2-port configurations the Speedway® Revolution reader from Impinj delivers up to a full 32.5 dBm of transmit power and delivers an industry leading receive sensitivity at – 82 dBm allowing the Speedway Revolution to see and read more tags from farther distances than other RFID readers on the market. And with its patented Autopilot technology, Power over Ethernet (PoE) capability, and best-in-class receive sensitivity, the Speedway Revolution delivers peak performance all day, every day.

^ back to top

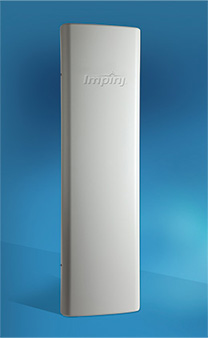

Speedway Xportal

xPortal Revolution

The Speedway xPortal, an integrated portal reader, incorporates the industry-leading Speedway Revolution RFID reader and Impinj’s Dual-Linear Phased Array (DLPA) antenna technology, yielding the industry’s smallest, most flexible, and cost-effective RFID portal solution.

^ back to top

Handheld Readers

CS101

CS101 is a UHF EPC C1G2 handheld RFID reader with industry leading read range and read rate performance to enable ultra fast inventory of cases on pallet, warehouse shelves, moving vehicles, and other tagged items in business processes where fixed reader class performance is required in a portable device./td>

^ back to top

Tags, Labels and ID Badges:

TransTech offers many different UHF Tags, Labels and ID Badges to provide the best possible UHF RFID tag for any application.

See the Tag Selection Guide for full info.

TTS-C-BAP

The TTS-C-BAP Battery-Assisted Passive UHF ID Card.is the optimal solution for Personnel Tracking Security Professionals no longer need to choose between a costly active solution or a passive one with limited readability on the body. The TTS-C-BAP is an alternative which can be read consistently and reliably when hanging from the neck, embedded in a wallet, pocket, backpack, or purse.

^ back to top

Network Camera

Lilin manufacturers innovative, high quality IP based network cameras, ideal for use with the Nox RFID tracking and surveillance system.

Network Camera

NETWORK CAMERA

Lilin manufacturers innovative, high quality IP based network cameras, ideal for use with the Nox RFID tracking and surveillance system.

^ back to top

UHF Card Printer

Evolis further demonstrates its commitment to offering innovative and reliable solutions by integrating UHF Gen 2 encoders to its Pebble, Dualys, and Quantum ID card printers.

This option allows organizations to implement efficient yet secure identification and access control RFID systems. The Gen 2 UHF RFID technology - already widely used in asset management - brings security, speed and convenience to any identification process. Gen 2 ID cards offer a wider read range and allow multiple card reads at the same time. Extremely secure, Gen 2 is an internationally recognized standard that allows for significant flexibility in many applications when integrated in an Evolis card printer.

rio pro gen 2 UHF

Rio Pro Gen 2 UHF

Gen 2 UHF RFID technology offers a greater read range as well as
multiple card reads simultaneously. This internationally known standard brings security and accessibility to the identification process.

^ back to top
