Farpointe Data, Inc. is the manufacturer of the Pyramid Series ProximityTM line of OEM proximity-RFID readers, cards, and tags.

Commonly referred to as "card keys," applications include electronic security, proximity card access control, and time & attendance.

Pyramid Series
Proximity® Readers, Cards & Tags

Delta™ Series
Contactless Smartcard Readers,
Cards & Tags

Ranger™ Series
Long Range Transmitters and Receivers

The P-300 Cascade Proximity Reader is a member of the Pyramid Series Proximity line of OEM proximity readers, cards, and tags for access control from Farpointe Data. Making use of proven digital radio frequency identification (RFID) technology, it may be mounted directly to a metal door or window frame (mullions).

Additionally, the P-300 features the option of either HID® or AWID proximity format support (model P-300-H or P-300-A, respectively), allowing it to read either HID® and Pyramid Series cards and tags or AWID and Pyramid Series cards and tags. The single-piece P-300 delivers non-contact read ranges up to 6 inches (152mm), and operates from 5 to 14 VDC. Physical size is a compact 3.2 x 1.7 x 0.7 inches (80 x 43 x 17mm).

^ back to top

The P-400 Gibraltar Proximity Reader is a member of the Pyramid Series Proximity line of OEM proximity readers, cards, and tags for access control from Farpointe Data. Making use of proven digital radio frequency identification (RFID) technology, it is constructed of stainless steel and Fiber-Tex (UL752 listed for bulletproof integrity) providing the very highest levels of vandal resistance.

Additionally, the P-400 features the option of HID® proximity format support (model P-400-H) allowing it to read both HID® and Pyramid Series cards and tags. The single-piece P-400 delivers non-contact read ranges up to 1 inch (25mm), and operates from 5 to 14 VDC. Physical size is a compact 5.2 x 2 x 0.75 inches (134 x 51 x 19mm).

^ back to top

The P-500 Alps Proximity Reader is a member of the Pyramid Series Proximity line of OEM proximity readers, cards, and tags for access control from Farpointe Data. Making use of proven digital radio frequency identification (RFID) technology, it may be mounted directly to a flat surface or US single gang electric boxes.

Additionally the P-500 features the option of HID® proximity format support (model P-500-H) allowing it to read both HID® and Pyramid Series cards and tags.

^ back to top

^ back to top

Delivering a longer read range, the model P-700 is intended for applications calling for heightened levels of convenience, such as parking lots and high-volume employee entrances.

Model P-640-H includes the option of HID® 125 kHz card format support, and model P-640-A includes the option of AWID compatibility.

^ back to top

The P-900 Proximity Reader is a member of the Pyramid Series Proximity® line of OEM proximity readers, cards and tags. A high performance design, it is classified as a long range reader, and is capable of delivering read ranges of up to 20-inches (508 mm). The longer read range of the P-900 adds convenience to a wide range of access applications, including turnstiles and parking control.

^ back to top

The PSC-1 Standard Light Proximity Card from the Farpointe Data is a member of the Pyramid Series Proximity line of OEM proximity readers, cards and tags for access control, and may be used with all the Pyramid Series readers. Providing maximum read range in a durable clamshell-style package, it can be easily carried in a wallet or purse, or worn with a clip or necklace.

Physical size is a nominal 3.4 x 2.2 x 0.06 inches (86 x 55 x 1.5 mm). The PSC-1 may be sequentially coded in either a standard 26-bit Wiegand, custom Wiegand or magnetic stripe data format, all with exact number sequences.

^ back to top

The PSI-4 Image Technology Proximity Card from the Farpointe Data is a member of the Pyramid Series Proximity line of OEM proximity readers, cards and tags, and may be used with all the Pyramid Series readers. Providing the option of dye sublimation imaging in a durable credential, it makes an ideal integrated photo identification proximity card for the 21st century.

Physical size is a nominal 3.38 x 2.12 x 0.046 inches (85.9 x 53.8 x 1.17 mm). The PSI-4 may be sequentially coded in either a standard 26-bit Wiegand, custom Wiegand or magnetic stripe data format, all with exact number sequences.

^ back to top

The PSM-2 Multi Technology Proximity Card from the Farpointe Data is a member of the Pyramid Series Proximity line of OEM proximity readers, cards and tags for access control, and may be used with all the Pyramid Series readers. Conforming to the ISO 7811 standard with a thickness of just 0.031 inch (0.8 mm), it allows the user to combine several identification technologies in a single card. Physical size is a nominal 3.4 x 2.2 x 0.031 inches (86 x 55 x 0.8 mm). The PSM-2 may be sequentially coded in either a standard 26-bit Wiegand, custom Wiegand or magnetic stripe data format, all with exact number sequences.

^ back to top

The PSK-3 Proximity Key Ring Tag from the Farpointe Data is a member of the Pyramid Series Proximity line of OEM proximity readers, cards and tags and may be used with all the Pyramid Series readers. Equipped with a brass eyelet, the tag is intended for attachment to either a key chain or necklace for convenient carrying.

Physical size is a nominal 1.5 x 1.2 x 0.15 inches (36 x 29 x 3.8 mm), making it one of the absolute smallest proximity key ring tags available. The PSK-3 may be sequentially coded in either a standard 26-bit Wiegand, custom Wiegand or magnetic stripe data format, all with exact number sequences.

^ back to top

^ back to top

The Delta 5 offers a Slim design which makes it ideal for applications such as door access (metal mullion, door or window frame mount).

Compatible with Wiegand and magnetic stripe protocols for easy integration with standard access systems. Supports MIFARE TM a leading industry standard for contactless smart cards. Secured with tamper- and weather-resistant epoxy potting, and backed by a lifetime warranty.

^ back to top

The Delta 6.4 offers a Slim design which makes it ideal for applications such as door access (metal mullion, door or window frame mount).

Compatible with Wiegand and magnetic stripe protocols for easy integration with standard access systems. Supports MIFARE TM a leading industry standard for contactless smart cards. Secured with tamper- and weather-resistant epoxy potting, and backed by a lifetime warranty.

^ back to top

The model DC1-1 is an ISO14443-compliant, clamshell-style contactless smartcard card with a 1K-byte memory. Constructed of durable ABS, it is backed by a lifetime warranty. Memory of the model number DC4-1 is 4K-bytes.

^ back to top

The model DM1-3 is an ISO14443-compliant, contactless smartcard card with a 1K-byte memory. Manufactured from glossy PVC, it is appropriate for dye sublimation imaging (ISO style). Model number with a magnetic stripe is DM1-3S. Memory of model numbers DM4-3 and DM4-3S is 4K-bytes.

^ back to top

The model DK1-3 is an ISO14443-compliant key tag-style contactless smartcard credential with a 1K-byte memory. It is designed to be carried on a key ring, and includes a brass reinforcing eyelet. Memory of the model number DK4-3 is 4K-bytes.

^ back to top

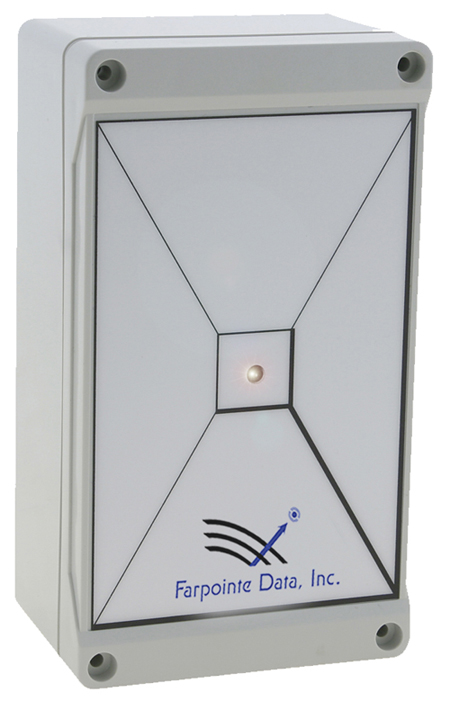

The model WRR-44 is a long range radio-type receiver, features a Transmitter receive range of up to 200-feet (61-m), and is ideal for applications involving vehicle or disabled access.

^ back to top

The model WRR-22 is a long range radio-type receiver, features a Transmitter receive range of up to 200-feet (61-m), and is ideal for applications involving vehicle or disabled access.

^ back to top

The model WRT-2+ is a 2-button clicker-type access credential, featuring both long range (upon button push) and proximity operation. The proximity component of may be programmed to HID® or AWID 125 kHz format support.

^ back to top

The model WRT-4+ is a 4-button clicker-type access credential, featuring both long range (upon button push) and proximity operation; The proximity component of may be programmed to HID® or AWID 125 kHz format support.
