Times-7
Times-7 designs and manufactures a wide range of reliable, high-performance UHF antenna, delivered in a form factor that is unmatched on the market. Times-7's Slimline™ antenna products offer robust performance in a variety of configurations including ultra-low profile fixed linear and circular far-field antenna, door-frame and ground mat antenna for creating strong RFID portal entry and exitways, powerful smart shelf antenna, and near-field offerings, including the smallest wideband UHF antenna on the market. All packaged in an attractive, unobtrusive form that blends seamlessly into many environments.
|
|
|
|
|
|
A1001 |
|
|
A1001 |
|
|
|
The A1001 is the smallest commercially available wideband near field UHF antenna.
Close proximity RFID is conventionally performed using HF and not UHF technology. With the A1001 short range antenna, the same underlying UHF RFID infrastructure (tags and readers) can be used for long range and reading multiple tags at once, and for POS and security when you only want to read one tag at a time.
|
^
back to top |
|
|
|
|
A1030 |
|
|
A1030 |
|
|
|
Offering the world’s largest working surface in a near field antenna, and just 6.5 mm / 0.25 in. thick, the A1030 is opening up new possibilities for item level RFID tracking where a short range read is required.
The A1030 antenna offers outstanding near field performance in a unique and optimised footprint, improving workflow and eliminating stray tag-reads.
Highly durable, with flexible and easy mounting options, and with a fire retardant Kydex radome, the A1030 is a rugged performer - and as the largest and thinnest near field antenna around - the A1030 packs a sizeable punch in the world of UHF antennas.
|
^
back to top |
|
|
|
|
A4030C |
|
|
A4030C |
|
|
|
The SlimLine A4030C is an ultra-low profile circular polarized flat panel antenna. Its total thickness is just 0.5 inches. At just 11x11 inches and only 0.5 inches thick, the A4030C is going places that many antennas simply won't fit.
With an even 60 degree beam width in both planes, the A4030C is a versatile, high performance antenna providing up to a 19.5ft read range. The rear connector provides for ease of seamless installation, where no visible cable is important.
|
^
back to top |
|
|
|
|
A5530 |
|
|
A5530 |
|
|
|
The SlimLine A5530 is an ultra-low profile ground mat antenna. Its total thickness is just 12 mm. Two versions are available, one for the (ETSI) 864 MHz – 869 MHz band and one for the US (FCC) 902 MHz – 928 MHz band.
It can be used for UHF RFID applications optimized for moving products or assets, in particular where side antennas are unsuitable. Its rugged, durable design is suitable for industrial applications.
|
^
back to top |
|
|
|
|
|
A6031 |
|
|
A6031 |
|
|
|
The SlimLine A6031 is an ultra-low profile circular polarized flat panel antenna for UHF RFID applications in customer facing or space constraints environments, where up to 4m (13ft) read range performance is required. Similar in size and weight to a Tablet PC, the A6031 can easily blend into an office or retail environment.
Applications
- • RFID applications requiring a sleek, small footprint antenna and up to 4m (13ft) read range
- • Space constrained or customer facing environments
- • Rugged design suitable for industrial applications
|
^
back to top |
|
|
|
|
|
A6032 |
|
|
A6032 |
|
|
|
The SlimLine A6032 is an ultra-low profile circular polarized flat panel antenna. Its total thickness is just 0.5 inches. Flush wall mounted for asset tracking or used as a slim counter top inventory antenna, the A6032 is unobtrusive and user friendly.
Applications
- • RFID applications requiring a sleek, high performance antenna and up to 6m (19.7ft) read range
- • Space constrained or customer facing environments
- • Rugged design suitable for industrial applications
|
^
back to top |
|
|
|
|
|
A6034 |
|
|
A6034 |
|
|
|

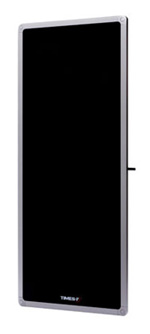

The SlimLine A6034 is an ultra-low profile circular polarized flat panel high gain antenna. Its total thickness is just 0.5 inches. At 747mm long (29.4 inches), it can do the job of two smaller antennas and can easily be wall or ceiling mounted, or integrated into dock doors or portals.
Applications
- • RFID applications requiring a sleek, high performance antenna with a long read range (up to 9m/29ft)
- • Space constrained or customer facing environments
- • Rugged design suitable for industrial applications
|
^
back to top |
|
|
|
|
|
A6034S |
|
|
A6034S |
|
|
|
The SlimLine A6034S is an ultra-low profile circular polarized flat panel high gain antenna. Its total thickness is just 0.5 inches. With an even and narrow (50 degrees in both planes) beam, the A6034S provides for a highly accurate read zone.
Applications
- • RFID applications requiring a sleek, high performance antenna and long read range (up to 29ft)
- • Space constrained or customer facing environments
- • Rugged design suitable for industrial applications
|
^
back to top |
|
|
|
|
|
A7030C |
|
|
A7030C |
|
|
|
Part of the SlimLine range of shelving antennas, the A7030C with its innovative ‘Array-Ability’ design offers a highly scalable and customized antenna solution for a wide range of RFID deployments.
At just 0.3 in. thick, the A7030C combines ultra-low profile and intelligent scalable design, with the performance of a circular polarized UHF antenna. With a highly durable Kydex radome and flexible easy mounting options, including the use of innovative ‘Array-Ability’ feet, the A7030C is ideal for existing shelving systems or embedding into smart cabinet systems, providing for retail item level tracking, tool tracking, real-time asset & inventory management – it’s quite simply the smartest antenna on the shelf.
|
^
back to top |
|
|
|
|
|
A8060 |
|
|
A8060 |
|
|
|
The SlimLine A8060 is a unique door frame antenna that is just 0.3 inches. At 650mm long (25.6 inches) and 86mm wide (3.4 inches), it can turn most existing doorways into an RFID portal / read point.
Applications
- • RFID deployments in office dooways for asset and people tracking
- • Avoid extra cost of frames and mounting kits
- • Works as left, right and top antenna and combines well with the SlimLine A6590C ground antenna
|
^
back to top |
|
|
